high arc erosion resistace and good mechanical strength bimetal Contact Rivets used for switch
1. Product name:
high arc erosion resistace and good mechanical strength bimetal Contact Rivets used for switch
| item | head diameter
D(mm) | head thickness
T(mm) | layer diameter
S(mm) | shank diameter
d(mm) | Shank length
L(mm) | sphere radium
SR(mm) | mold ratio
8(°) |
specifi
-cation | 2.5 | 0.6.,08,1 | 0.3-0.4 | 1.2,1.5 | 1─2 | 4,6 | 9 |
| 3 | 0.8,1.0,1.2 | 0.35-0.5 | 1.5 | 6,8 |
| 3.5 | 1.5,2 | 1─3 |
| 4 | 1.0,1.2,1.5 | 2 | 8,10 |
| 4.5 | 2.0,2.5 |
| 5 | 1.0,1.2,1.5,2.0 | 0.4-0.6 | 2.5 | 10,15 |
| 5.5 | 2.5,3.0 |
| 6 | 3 | 15,20 |
| 6.5 | 1.2,1.5,2.0 | 0.5-0.7 | 3.0,3.5 |
| 7 | 3.5 | 20,25 |
| 8 | 4 |
head ancshank
coaxiality | ±0.1 | ±0.05 | S≤0.4+0.06
S＞0.4-0.06 | -0.12 | ±0.15 | ±0.2R | ±2 |
| head diameter(mm) | 2.5-3.0 | 3.0-6.0 | 6.0-8.0 |
| coaxiality | 0.12 | 0.15 | 0.2 |
2. Product Specifications:
A). Main material:Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc
B). Shapes:Flat head, Round head
C). Types: Solid rivet, Blind rivet, Bimetal rivet, Tri-metal rivet, etc.
D). Certification: ISO9001, SGS,ROHS
3. characteristics
1, There are two kind of composite methods in Contact Rivet :head layer can use Ag ,Cu ,Pd,Pt
and its alloy materials ; base material generally chooses pure copper which has better formation and electricity conductivity ,precious metal materials are only compounded at essential contact position of Electrical Contacts so that they can economize precious metal,reduce the cost of Electrical Contacts and benefits the development of society.
2, It is much easier to choose layer alloy material than monometal contact rivet .Although precious metal alloy materials has excellent electrical contact function ,they are not durable than composite rivets contacts in use .
3, Composite Contact Rivet apply to continuous automatically production .After riveting, they don’t need other manufacturing technical methods (such as electroplating ,welding etc).This method not only simplifies contact manufacturing ,improves efficiency and reduces cost ,but also strengthens the assembling accuracy and credibility of component .
4. Application
Electrical rivets contact are widely used in automobile electric appliances,household appliances,relays,contactors,thermostat,all kinds of switch,aviation appliances,timer and electronic appliances.
5. our customor
we mainly serve Schneider, ABB, LS, Siemens, Chint, West Germany, people appliances, Tyco, Jinlong Machinery & Electronics, Xiamen Hongfa and other well-known companies.

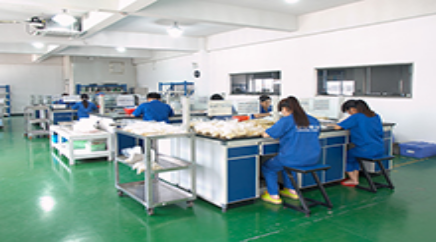

6. Produce environment
Workshop 6S management system
7. Quality quarantee
8. Packing and Delivery
Inside:Vaccum plastic bag
Outside:Carton according to customers’ request
Delivery: within 15 days
