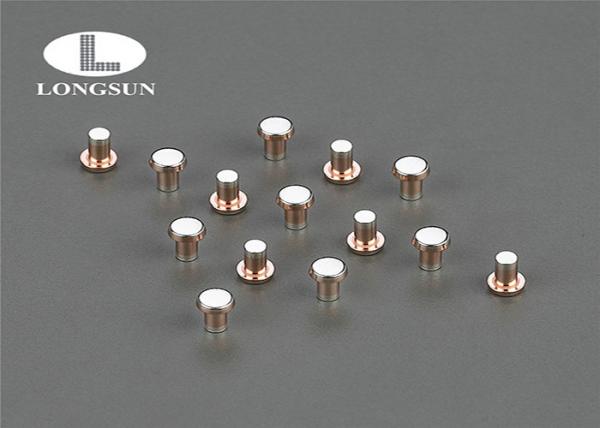

high electrical resistivity and long electric life bimetal Contact Rivets used for switch
1. Product name:
high electrical resistivity and long electric life bimetal Contact Rivets used for switch
(A) Tri-metal Electrical Contacts:
AgCuAg, FAgCuFAg , AgNiCuAgNi , AgSnO2Cu AgSnO2, AgSn02In03Cu AgSn02In03, AgCuCu AgCu, AgZn0Cu AgZn0, AgCd0Cu AgCd0,etc.
(B) Bi-metal Electrical Contacts: AgCu,FAgCu,AgNiCu,AgSnO2Cu,AgSn02In03Cu,AgCuCu,
AgZn0Cu,AgCd0Cu,etc .
(C) Solid Electrical Contact Rivet:
Ag, Cu, AgNi, AgCdO, AgSnO
| item | head diameter
D(mm) | head thickness
T(mm) | layer diameter
S(mm) | shank diameter
d(mm) | Shank length
L(mm) | sphere radium
SR(mm) | mold ratio
8(°) |
specifi
-cation | 2.5 | 0.6.,08,1 | 0.3-0.4 | 1.2,1.5 | 1─2 | 4,6 | 9 |
| 3 | 0.8,1.0,1.2 | 0.35-0.5 | 1.5 | 6,8 |
| 3.5 | 1.5,2 | 1─3 |
| 4 | 1.0,1.2,1.5 | 2 | 8,10 |
| 4.5 | 2.0,2.5 |
| 5 | 1.0,1.2,1.5,2.0 | 0.4-0.6 | 2.5 | 10,15 |
| 5.5 | 2.5,3.0 |
| 6 | 3 | 15,20 |
| 6.5 | 1.2,1.5,2.0 | 0.5-0.7 | 3.0,3.5 |
| 7 | 3.5 | 20,25 |
| 8 | 4 |
head ancshank
coaxiality | ±0.1 | ±0.05 | S≤0.4+0.06
S＞0.4-0.06 | -0.12 | ±0.15 | ±0.2R | ±2 |
| head diameter(mm) | 2.5-3.0 | 3.0-6.0 | 6.0-8.0 |
| coaxiality | 0.12 | 0.15 | 0.2 |
2. Product Specifications:
A). Main material:Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc
B). Certification: ISO9001, SGS,ROHS
C). Types: Solid rivet, Blind rivet, Bimetal rivet, Tri-metal rivet, etc.
D). Shapes:Flat head, Round head
3. Product Features:
A) Double composite riveting efficiently save precious metals and reduce the cost
B) Trimetal rivet can replace solid rivets. It widely used as moving contacts during two sides of contact, to a great extent reduce the material cost.
C) Improve the contact rivet riveting performance.
D) Apply continuous automation production.
4. Application
Electrical rivets contact are widely used in automobile electric appliances,household appliances,relays,contactors,thermostat,all kinds of switch,aviation appliances,timer and electronic appliances
5. our customor
we mainly serve Schneider, ABB, LS, Siemens, Chint, West Germany, people appliances, Tyco, Jinlong Machinery & Electronics, Xiamen Hongfa and other well-known companies.
6. Produce environment
Workshop 6S management system
7. Quality quarantee
(1) Surface inspection
(2) The physical and chemical inspection
(3) Microstructure analysis
(4) The surfElectrical life test
(5) ace roughness analyzed
8. Packing and Delivery
Inside:Vaccum plastic bag
Outside:Carton according to customers’ request
Delivery: within 15 days
