AgCdO electric moving contacts for breakers, protectors, timers and contactors

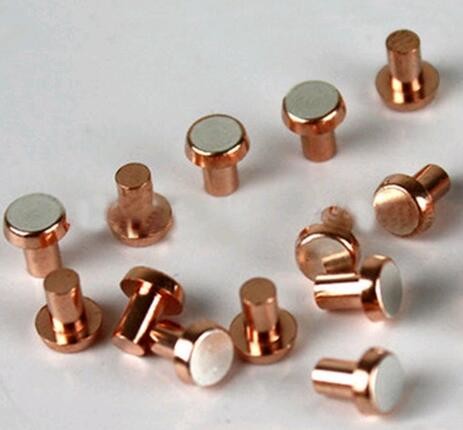

1. Product name: electrical rivet contact
(A)Solid Electrical Contact Rivet:
Ag, Cu, AgNi, AgCdO, AgSnO
(B) Bi-metal Electrical Contacts: AgCu,FAgCu,AgNiCu,AgSnO2Cu,AgSn02In03Cu,AgCuCu,
AgZn0Cu,AgCd0Cu,etc .
(C) Tri-metal Electrical Contacts:
AgCuAg, FAgCuFAg , AgNiCuAgNi , AgSnO2Cu AgSnO2, AgSn02In03Cu AgSn02In03, AgCuCu AgCu, AgZn0Cu AgZn0, AgCd0Cu AgCd0,etc.
| material | specification(Wt%) | | density
≥g/cm3 | resistance
≤μΩ.cm |
| Ag | Ni | SnO2 | In2O3 | ZnO | CdO |
| Ag | 99.95 | ── | ── | ── | ── | ── | 10.48 | 1.8 |
| FAg | 99.85 | 0.15 | ── | ── | ── | ── | 10.48 | 1.9 |
| | | | | | | | | |
| AgNi(10) | 90 | 10 | ── | ── | ── | ── | 10.2 | 2 |
| AgNi(15) | 85 | 15 | ── | ── | ── | ── | 10.1 | 2.1 |
| AgNi(20) | 80 | 20 | ── | ── | ── | ── | 10 | 2.3 |
| | | | | | | | | |
| AgCdO(10) | 90 | ── | ── | ── | ── | 10 | 10 | 2.3 |
| AgCdO(12) | 88 | ── | ── | ── | ── | 12 | 9.95 | 2.4 |
| AgCdO(15) | 85 | ── | ── | ── | ── | 15 | 9.8 | 2.5 |
| AgCdO(17) | 83 | ── | ── | ── | ── | 17 | 9.7 | 2.6 |
| | | | | | | | | |
| AgSnO2(8) | 92 | ── | 8 | ── | ── | ── | 9.9 | 2.2 |
| AgSnO2(10) | 90 | ── | 10 | ── | ── | ── | 9.8 | 2.3 |
| AgSnO2(12) | 88 | ── | 12 | ── | ── | ── | 9.7 | 2.4 |
| | | | | | | | | |
| AgZnO(8) | 92 | ── | ── | ── | 8 | ── | 9.4 | 2.5 |
| AgZnO(10) | 90 | ── | ── | ── | 10 | ── | 9.3 | 2.6 |
| | | | | | | | | |
| AgSnO2(5)in2o3(5) | 92 | ── | 5 | 3 | ── | ── | 9.9 | 2.3 |
| AgSnO2(6)in2o3(4) | 90 | ── | 6 | 4 | ── | ── | 9.8 | 2.4 |
| AgSnO2(7)In2O3(3) | 90 | ── | 7 | 3 | ── | ── | 9.8 | 2.4 |
| AgSnO2(8)In2O3(4) | 88 | ── | 8 | 4 | ── | ── | 9.7 | 2.5 |
| AgSnO2(9)In2O3(4) | 87 | ── | 9 | 4 | ── | ── | 9.6 | 2.6 |
| AgSnO2(10)In2O3(4) | 86 | ── | 10 | 4 | ── | ── | 9.5 | 2.7 |
2.Product Specifications:
A).Certification: ISO9001, SGS,ROHS
B).Main material:Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc
C).Types: Solid rivet, Blind rivet, Bimetal rivet, Tri-metal rivet, etc.
D).Shapes:Flat head, Round head
3. Product Features:
A)Double composite riveting efficiently save precious metals and reduce the cost
B)Trimetal rivet can replace solid rivets. It widely used as moving contacts during two sides of contact, to a great extent reduce the material cost.
C)Improve the contact rivet riveting performance.
D)Apply continuous automation production.
4. Application
Electrical rivets contact are widely used in automobile electric appliances,household appliances,relays,contactors,thermostat,all kinds of switch,aviation appliances,timer and electronic appliances
5. Company Profile
LONGSUN GROUP is a leading manufacturer of electrical contact materials and electrical contacts. It was established in 1986 and the registered capital is RMB290 million.
6. Our customer
appliances, military, audio-visual and other fields and we mainly serve Schneider, ABB, LS, Siemens, Chint, West Germany, people appliances, Tyco, Jinlong Machinery & Electronics, Xiamen Hongfa and other well-known companies. Longsun products have exported to more than 50 countries and regions such as Europe, Asia, North America, South America and Australia.
7. Packing and Delivery
Inside:Vaccum plastic bag
Outside:Carton
according to customers’ request
Delivery: within 15 days
